Dimensions(mm)

  Impact-tolerant structure
  Higher ultimate trip current and smaller resistance
between terminals than that in BPC type.
  Suitable for high capacity Li-ion battery pack
  Shunted and snap action bimetallic protector

Applications

Overheat protection for higher power rechargeable
battery pack such as higher power Li-ion battery pack
(for Notebook type of PC), Ni-MH battery pack (for
power tools) etc.

Specifications

  Operating temp. setting range: from 70C to 100C
  Operating temp. tolerance: +/-5,+/-8,+/-10C
  Resetting temperature: 46C or higher
  Maximum cut-out current: DC12V 120A
  Contact Rating: 10A 18V DC 6,000 cycles
(Reference Value)

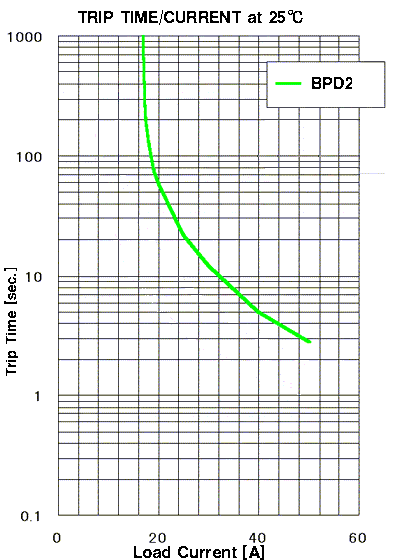

  Ultimate trip current: 16.5A (Operating temp.80C,
 Ambient temp.25C, Leadwire AWG18)

Listed Ratings
(Please contact us for further information)

UL873:Regulating 10A 18V DC
6,000 cycles res. 100C max.(File No. E50124);
CSA C22.2 No.24 ( c-UL):10A 18V DC
6,000 cycles res. 100C max.(File No. E50124)
EN60730-2-9:Thermal cut-out
10A 18V DC 6,000 cycles res.100C max.
File No.8921.00-4510-0034).

Variations

  Terminals and Leads

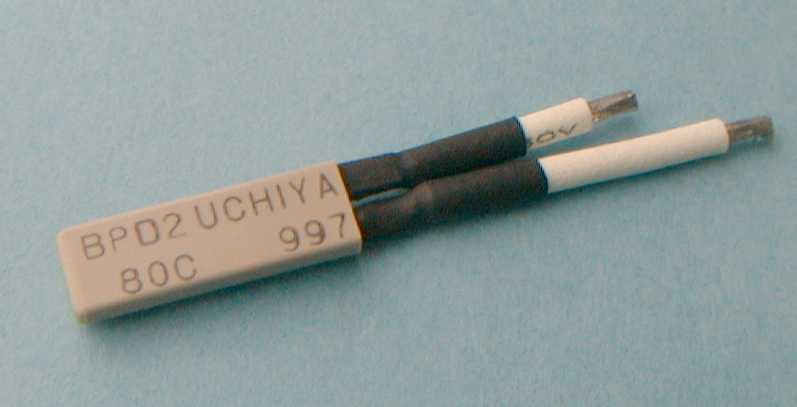

BPD   : Without wire lead
BPD1 : Uninsulated solid wires
BPD2 : Stranded insulated wires
BPD3 : Nickel leads ( ribbons )
